Hydraulic systems play a crucial role in various industries, from heavy machinery and manufacturing to automotive and aerospace applications. One of the key components of any hydraulic system is the hydraulic adapter fitting, which connects different hydraulic components, allowing fluid to flow efficiently and reliably. Ensuring proper installation and regular maintenance of these fittings is essential to maintain system integrity, reduce downtime, and optimize performance.
In this guide, Hoson, a leading hydraulic solutions manufacturer, provides an in-depth look at how to correctly install and maintain hydraulic adapter fittings. By following these best practices, companies can improve the longevity of their hydraulic systems and reduce costly repairs.

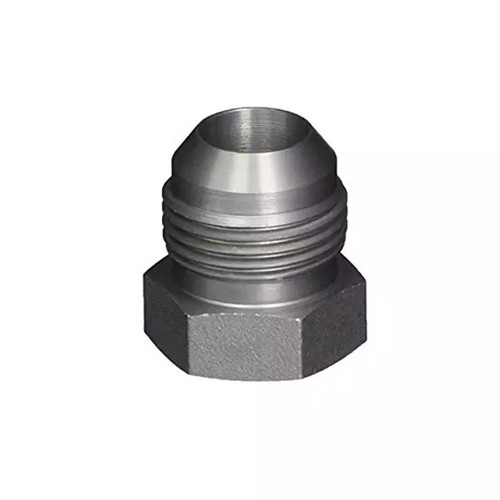

Understanding Hydraulic Adapter Fittings
Hydraulic adapter fittings are connectors used to join hydraulic hoses, pipes, or tubes within a system. These fittings come in various shapes, sizes, and designs to accommodate different types of connections, including male, female, and threaded fittings. Ensuring that the right type of fitting is used is critical for maintaining a leak-free and efficient hydraulic system.
Common hydraulic adapter fitting materials include:
Steel: Used for high-pressure applications (up to 10,000 PSI).
Brass: Often used for lower-pressure applications (up to 1,000 PSI).
Stainless Steel: Ideal for corrosion resistance, typically used in harsh environments.
Selecting the appropriate material and fitting type is essential for the system’s durability and efficiency. For example, using a steel fitting where a brass fitting would suffice could lead to higher costs without additional performance benefits, while choosing a lower-strength fitting for a high-pressure system may result in failure.
Steps for Proper Hydraulic Adapter Fitting Installation
To ensure a safe and effective installation, it's important to follow a series of best practices that reduce the risk of leaks, connection failure, or damage to the hydraulic system. At Hoson, we emphasize the importance of these critical steps:

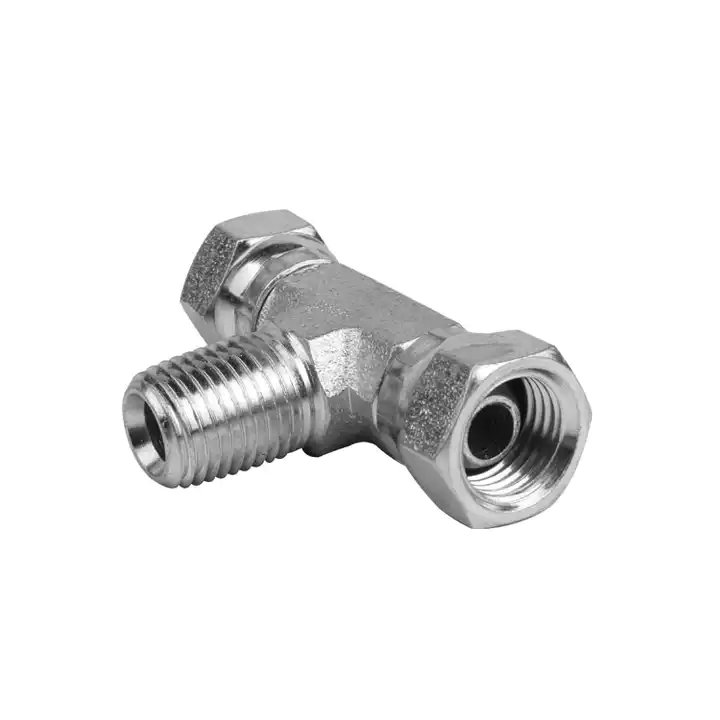

1. Choose the Correct Fitting
Selecting the right hydraulic adapter fitting for your application is the first and most crucial step. Fittings come in various standards such as JIC, NPT, and BSP, and it's essential to match the correct fitting with the hydraulic components. The pressure rating, material, and size must be compatible with the system’s requirements.
For example, if a system operates at 5,000 PSI, a fitting with a lower pressure rating would not suffice. Make sure to consult the manufacturer’s guidelines to determine the appropriate fitting for the given application.
2. Inspect Fittings and Components
Before installation, inspect the hydraulic fittings and hoses for any visible signs of damage, such as cracks or deformities. Any compromised fitting should be replaced immediately. Even a small imperfection can lead to leaks or failure under pressure, which can result in costly repairs and downtime.
3. Cleanliness is Key
Hydraulic systems are highly sensitive to contamination. Any dirt or debris can cause significant wear and tear on the system's components, including the adapter fittings. Before installation, clean the fittings and the surrounding area thoroughly using a lint-free cloth. This practice prevents contaminants from entering the system and damaging the hydraulic seals or other components.
4. Apply the Correct Torque
Each fitting type requires specific torque settings for proper installation. Over-tightening or under-tightening can cause leaks, damage to the fitting, or failure of the connection. Use a calibrated torque wrench to apply the manufacturer’s recommended torque. For example, an SAE fitting for a 1/2" tube size may require 45-50 ft-lbs of torque, depending on the application and material.
Exceeding the recommended torque can strip threads or crack the fitting, while insufficient torque may lead to loose connections that result in leaks under pressure. Always check the installation manual or guidelines provided by Hoson or your hydraulic component supplier.
5. Check for Alignment
Misalignment of hydraulic adapter fittings is a common cause of failure in hydraulic systems. When connecting hoses or tubes, ensure that the fittings are properly aligned. Misaligned connections place stress on the hydraulic system, causing undue wear on hoses and fittings, which can lead to premature failure.
Use the correct bend radius for hoses to avoid unnecessary strain on the fittings. Hydraulic hose bend radius specifications depend on the hose size and pressure rating but are typically around 3-4 inches for a 1/2" diameter hose. This will prevent kinking and extend the life of both the hose and the fitting.
Maintaining Hydraulic Adapter Fittings
Proper maintenance of hydraulic adapter fittings is essential for keeping hydraulic systems running smoothly. Regular inspections and preventative maintenance can help detect issues before they escalate, preventing costly repairs and downtime.
1. Regular Inspections
Check hydraulic adapter fittings regularly for any signs of wear, corrosion, or leakage. At Hoson, we recommend inspecting fittings at least once every three months, or more frequently in systems that operate under high pressure or in harsh environments. Pay close attention to areas where fittings connect to hoses or tubes, as these are the most likely spots for wear and leaks to develop.
2. Monitor System Pressure
Regularly monitoring the hydraulic system’s pressure is a proactive way to detect problems early. If the pressure drops or fluctuates unexpectedly, it may indicate a leak or a failing fitting. Identifying these issues early can prevent a complete system failure.

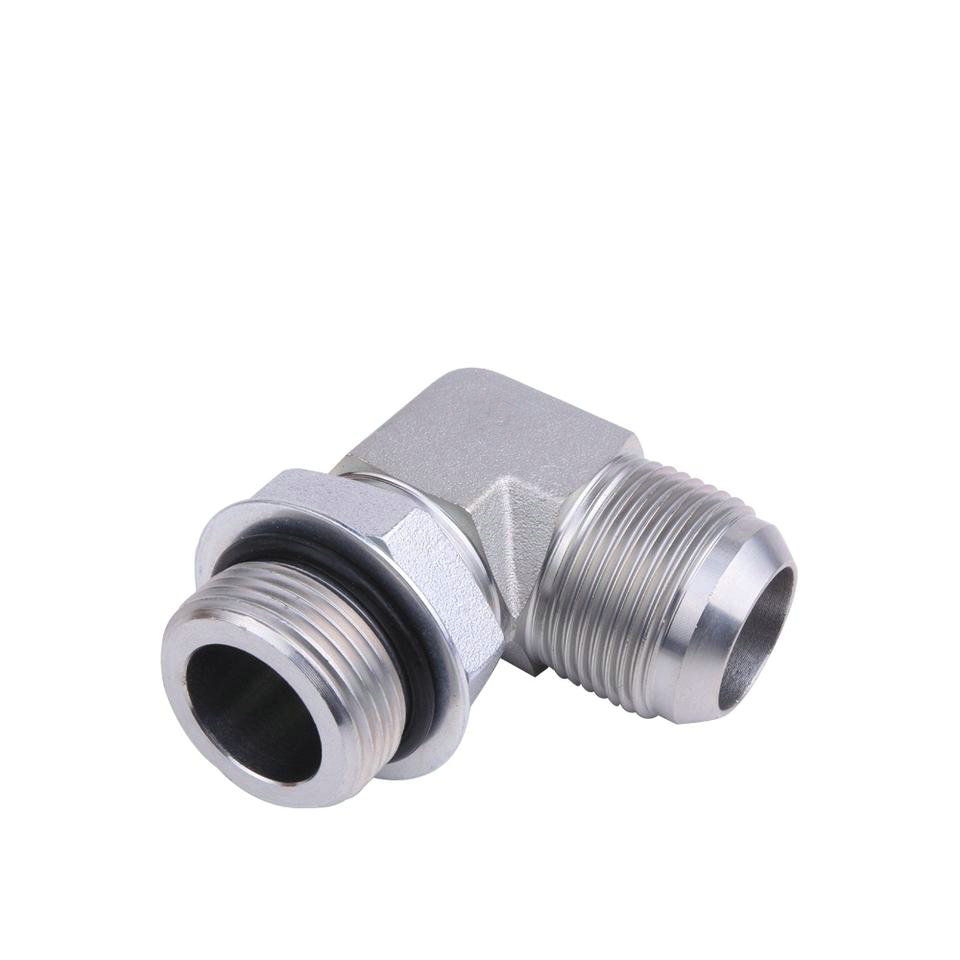

3. Replace Seals and O-Rings
Seals and O-rings within hydraulic adapter fittings can degrade over time, leading to leaks. It’s crucial to replace these components as part of regular maintenance, especially in high-pressure systems. Using genuine replacement parts from your supplier ensures the system retains its integrity and performs as expected.
For example, in a hydraulic system operating at 3,000 PSI, the degradation of O-rings can cause significant fluid loss, leading to a 10-20% drop in system efficiency. Replacing O-rings every 12-18 months, or sooner if signs of wear are evident, can prevent these issues.
4. Proper Storage of Spare Fittings
Hydraulic adapter fittings that are not in use should be stored in a clean, dry environment to prevent contamination or corrosion. Fittings exposed to dirt, dust, or moisture can degrade in quality, leading to premature failure when installed. Hoson advises storing fittings in sealed containers and away from direct sunlight to ensure they maintain their integrity.
Conclusion
Hydraulic adapter fittings play a critical role in ensuring the efficiency and reliability of hydraulic systems. By following proper installation practices and maintaining regular inspections, companies can extend the life of their hydraulic systems, prevent leaks, and improve overall cost performance.
At Hoson, we prioritize delivering high-quality hydraulic solutions to our customers, from precision-engineered adapter fittings to comprehensive maintenance support. As a leading hydraulic fitting manufacturer, we aim to provide reliable and cost-effective solutions to meet the diverse needs of industries worldwide. By understanding the intricacies of hydraulic adapter fitting installation and maintenance, businesses can minimize downtime and maximize their operational efficiency.
